Valves play a critical role in regulating the flow of gases and liquids in various industrial processes.

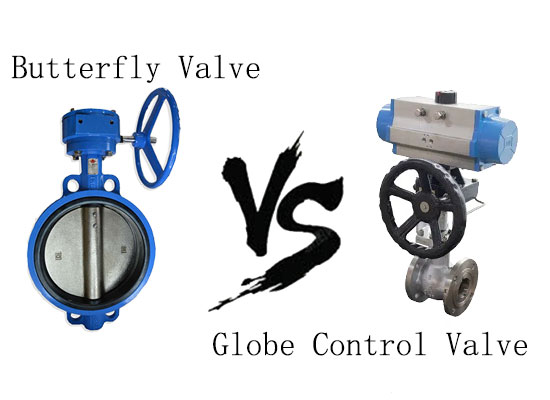

Butterfly valves and pneumatic globe control valves are two widely used valve types, each with distinct working principles, structures, and functions.
Understanding their differences helps in selecting the right valve for specific applications.
A butterfly valve operates using a rotating disc mounted on a rod. When the valve is fully open, the disc is rotated parallel to the flow, allowing fluid to pass through with minimal resistance.
To close the valve, the disc is rotated perpendicular to the flow, effectively blocking it. The rotation can be controlled manually, pneumatically, or electrically.
A pneumatic globe control valve operates using a linear motion. A pneumatic actuator receives air pressure signals, which drive the valve stem and plug to move up or down.
This movement regulates the flow by adjusting the gap between the plug and the valve seat. The globe valve provides precise control over flow rate and pressure.
Simple design with fewer components
Central disc mounted on a rod
Compact and lightweight structure
Sealing mechanism located at the edge of the disc or within the valve body
More complex internal structure
Consists of a valve body, stem, plug, and seat
Pneumatic actuator controls the stem’s vertical movement
Designed for precise flow and pressure control
Feature | Butterfly Valve | Pneumatic Globe Control Valve |
Primary Function | On/off control and moderate throttling | Precise flow and pressure control |
Flow Characteristics | Quick operation, minimal pressure loss | Accurate regulation of flow and pressure |
Media Type | Suitable for liquids and gases | Suitable for liquids, gases, and steam |
Pressure Handling | Moderate pressure handling | High pressure and temperature handling |
Precise Control: Provides accurate flow regulation due to linear motion control.
Pressure Management: Handles high-pressure and high-temperature conditions effectively.
Durability: Sturdy construction ensures long-term performance in demanding environments.
Versatility: Suitable for throttling, pressure reduction, and shut-off applications.
Compact and Lightweight: Requires less space and is easier to install.
Quick Operation: 90-degree rotation allows for fast opening and closing.
Cost-Effective: Lower manufacturing and maintenance costs.
Low Pressure Drop: Minimal resistance when the valve is fully open.
Quick opening and closing are needed
Space and weight are limited
Low-pressure applications are involved
Moderate flow control is sufficient
Precise flow regulation is required
High-pressure and high-temperature handling is necessary
Pressure drop needs to be carefully managed
Accurate pressure and flow adjustments are essential

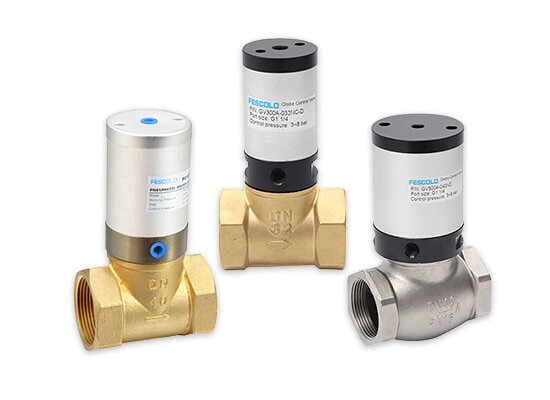

Fokca is a professional manufacturer of pneumatic and hydraulic components, offering high-quality pneumatic globe control valves designed for precision and durability.
With over two decades of experience, Fokca provides customized solutions to meet the needs of various industrial applications.
The company's advanced manufacturing processes and strict quality control ensure that every globe control valve delivers reliable performance under challenging conditions.
Yes, butterfly valves can be used for flow control, but they are more suitable for on/off control or moderate throttling. For precise flow regulation, globe control valves are a better choice.
Ideal for high-pressure, high-temperature applications where precise flow control is required. Commonly used in steam systems, chemical processing, and power plants.
Suitable for quick shut-off applications. Often used in water systems, oil and gas pipelines, and HVAC systems due to their simple operation and tight sealing capabilities.
