Mar 06, 2025

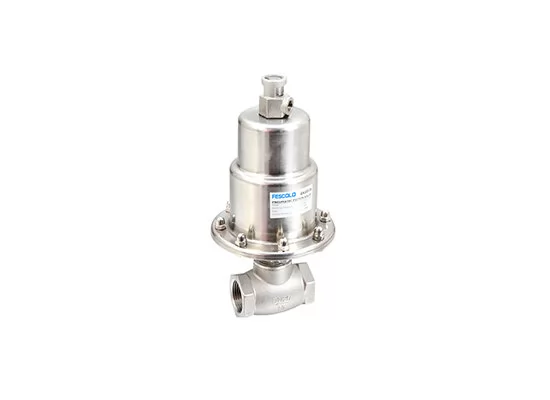

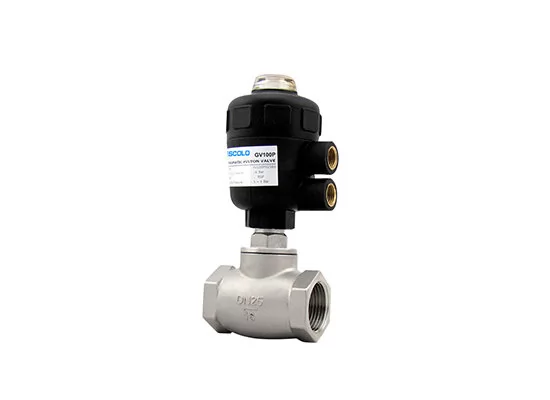

A Pneumatic Globe Control Valve is a type of control valve used to regulate the flow of fluid within a system. It combines the globe valve's ability to control flow and the precision offered by a pneumatic actuator.
These valves are essential in applications that require precise flow regulation, such as in chemical processing, power plants, and water treatment facilities.
The Pneumatic Globe Control Valve works by adjusting the position of a plug or disc in response to a pneumatic signal, making it ideal for fine-tuned control in industrial processes.
The structure of a Pneumatic Globe Control Valve is designed to handle fluid control efficiently and effectively.
It is composed of several critical components, each contributing to the valve’s overall function.
The globe valve body is the main component of the Pneumatic Globe Control Valve, which houses the flow passages and the internal moving parts.
Its design allows for optimal flow control with minimal turbulence, making it highly suitable for regulating the flow of gases, liquids, or steam.
The globe valve body is generally made from durable materials such as stainless steel, carbon steel, or alloys, ensuring it can withstand the pressures and temperatures of various industrial environments.
The pneumatic actuator is another key component of the Pneumatic Globe Control Valve.
It converts pneumatic pressure into mechanical movement, allowing the valve to open or close depending on the signal received.
This actuator provides the necessary force to move the valve's internal mechanism, adjusting the flow rate as required.
Pneumatic actuators offer high-speed operation, reliability, and ease of control, making them a preferred choice in automated systems.
The Pneumatic Globe Control Valve operates based on a feedback loop controlled by a pneumatic signal.
The actuator receives a compressed air signal that moves the valve stem and adjusts the position of the valve plug.
This movement controls the opening of the valve, thereby regulating the flow of the fluid.
The position of the valve plug is directly proportional to the pneumatic signal strength, offering precise control over flow rates.
The actuator typically operates in conjunction with a positioner to ensure accurate valve positioning for optimal performance.
Precise Flow Control:
The Pneumatic Globe Control Valve is known for its ability to provide accurate control over fluid flow.
Quick Response:
Pneumatic actuators offer rapid movement, making these valves ideal for high-speed operations.
Durable:
With components made from high-quality materials, these valves are built to withstand harsh operating conditions, ensuring longevity and reliability.
Cost-Effective:
Pneumatic systems are generally more cost-effective compared to electric or hydraulic alternatives.
Air Supply Dependency:
The valve relies on a continuous air supply to function. If the air supply fails, the valve's performance can be compromised.
Size and Weight:
Depending on the design, pneumatic globe control valves can be bulky and heavy, especially in larger applications.
Maintenance Needs:
Regular maintenance is required to keep the actuator and valve body in optimal condition, as pneumatic systems can experience wear over time.
The Pneumatic Globe Control Valve is widely used across various industries that require precise control of fluid flow. It is particularly common in:
Chemical Processing: For regulating the flow of chemicals in production processes.
Water Treatment: To control the flow of water or chemicals in treatment plants.
Power Generation: Used in steam and water systems for flow regulation.
Oil and Gas: Essential for controlling the flow of crude oil and natural gas in pipelines.
In these applications, the Pneumatic Globe Control Valve plays a vital role in maintaining process stability and safety.
In summary, the Pneumatic Globe Control Valve is an essential tool for industries that require fine control over the flow of fluids.
With its robust construction and precise operation, it remains a top choice for many industrial applications.
