Electromagnetic control

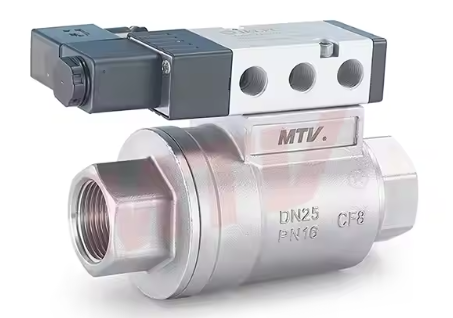

The solenoid valve controls the movement of the valve core by energizing and de energizing the solenoid coil. When the electromagnetic coil is energized, it generates a magnetic field that attracts the valve core to move, changing the path of the airflow; When the power is cut off, the spring or other reset mechanism returns the valve core to its initial position, restoring the original path of the airflow.
Airflow control: Electromagnetic valves typically have two or more air ports, used to connect the air source, actuator, and exhaust port. By changing the position of the valve core, the direction of airflow can be controlled, thereby controlling the action of pneumatic actuators (such as cylinders).
Multi position control: Some solenoid valves can be designed for multi position control, which achieves multiple working positions through different combinations of electromagnetic coils, thereby realizing more complex pneumatic control logic.
| Size | DN10 | DN15 | DN20 | DN25 |
| Thread End | 3/8 | 47/7 | 5/8 | 7/8 |
| A | 45 | 57 | 69 | 77 |
| D | 35 | 47 | 56 | 68 |
| SW | 36 | 46 | 57 | 78 |
| B | 46 | 56 | 65 | 76 |
Flexible logistics solutions: We collaborate with multiple international logistics companies to provide flexible and efficient logistics solutions, ensuring safe and timely delivery of products to customers.
High quality customer service: We value the needs of every customer and provide personalized services, including market analysis, product customization, after-sales service, etc., to ensure customer satisfaction.
Application scenarios
This type of solenoid valve is widely used in automation equipment, robots, pneumatic tools, and other applications that require precise control of airflow direction and pressure.
By cooperating with control systems such as PLC (Programmable Logic Controller), complex motion control on automated production lines can be achieved
